Argo Rollout Canary Deployment

this post aim to understand how Argo Rollout works.

prerequisites

1. k8s cluster
2. istio with full addon (easy to monitor and inspect)
3. argo-rollout v1.7.0

1. create a cluster

Now. I use minikube to create a cluster. why me not use kind anymore? because kind is very simple not support tunnel for forwarding port.

1

minikube start

with default driver docker.

2. install istio

first of all. the user should download the istio binary from the official site.

1
2

$ istioctl install --set profile=demo -y
$ kubectl label namespace default istio-injection=enabled

and install some addons for monitoring and inspecting.

1

$ kubectl apply -f samples/addons

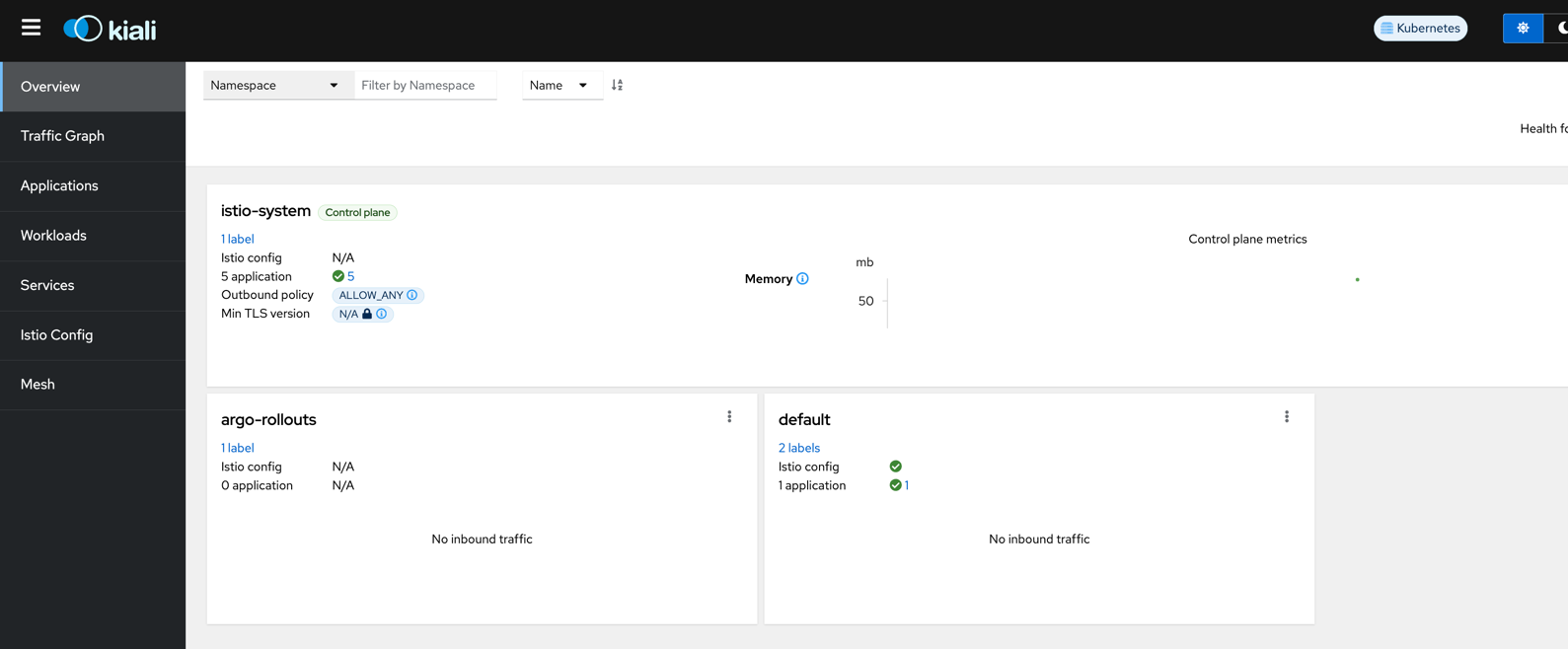

start browser to access kiali dashboard.

1

$ istioctl dashboard kiali


3. install argo-rollout

install argo-rollout with helm.

1
2
3
4
5
6
7
8
9

$ cd charts/argo-rollouts/
$ helm install -n argo-rollouts \                                                                                                                                                             [19:42:40]
    --set dashboard.enabled=true \
    --set dashboard.service.type=NodePort \
    --set controller.image.pullPolicy=IfNotPresent \
    --set controller.image.registry="quay.io" \
    --set controller.image.repository="argoproj/argo-rollouts" \
    --set controller.image.tag="v1.7.0" \
    argo-rollout .

4. install a rollout

As we know, The istio use a lb for accept the traffic.

traffic -> istio-ingressgateway -> gateway -> virtualservice -> service -> pod

4.1 gateway

This resource is a logical concept of the service grid, but it does not actually have a running entity.

1
2
3
4
5
6
7
8
9
10
11
12
13
14

apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
  name: rollouts-demo-gateway
spec:
  selector:
    istio: ingressgateway
  servers:
  - port:
      number: 80
      name: http
      protocol: HTTP
    hosts:
    - "*"

4.2 virtualservice

The VirtualService resource is used to configure the routing rules for the traffic. acctually, it is a CRD of istio.
The most important parts of this virtualservice are the two services under the http field.
The implementation of the rollout controller will automatically adjust the weight of traffic forwarding according to the degree of rollout.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: rollouts-demo
spec:
  gateways:
    - rollouts-demo-gateway # bind the gateway
  hosts:
    - rollouts-demo.local # HTTP host header, help to route the traffic
  http:
    - name: primary # this is an usefully for canary deployment
      route:
        - destination:
            host: rollouts-demo-stable # this required the service name
            port:
              number: 80
          weight: 100
        - destination:
            host: rollouts-demo-canary # this required the service name too
            port:
              number: 80
          weight: 0

4.3 service

The service is a k8s resource, it is used to expose the pod to the outside world.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

apiVersion: v1
kind: Service
metadata:
  name: rollouts-demo-canary
spec:
  ports:
  - port: 80
    targetPort: http
    protocol: TCP
    name: http
  selector:
    app: rollouts-demo
---
apiVersion: v1
kind: Service
metadata:
  name: rollouts-demo-stable
spec:
  ports:
  - port: 80
    targetPort: http
    protocol: TCP
    name: http
  selector:
    app: rollouts-demo

4.4 rollout

The Rollout resource is a custom resource provided by the argo-rollout controller. It is used to manage the deployment of the application.
to explain the Rollout resource, we need to know the canary strategy. the following example is a simple canary strategy.
that means is the canary service will receive 25% of the traffic, and the stable service will receive 75% of the traffic with first step.
the second step is the canary service will receive 50% of the traffic, and the stable service will receive 50% of the traffic.
the last step is the canary service will receive 100% of the traffic, and the stable service will receive 0% of the traffic.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

apiVersion: argoproj.io/v1alpha1
kind: Rollout
metadata:
  name: rollouts-demo
spec:
  replicas: 4
  strategy:
    canary:
      canaryService: rollouts-demo-canary
      stableService: rollouts-demo-stable
      trafficRouting:
        istio:
          virtualServices:
          - name: rollouts-demo
            routes:
            - primary
      steps:
      - setWeight: 25
      - pause: {}
      - setWeight: 50
      - pause: {}
  revisionHistoryLimit: 2
  selector:
    matchLabels:
      app: rollouts-demo
  template:
    metadata:
      labels:
        app: rollouts-demo
        istio-injection: enabled
        version: "1"
    spec:
      containers:
      - name: rollouts-demo
        image: argoproj/rollouts-demo:blue
        ports:
        - name: http
          containerPort: 8080
          protocol: TCP
        resources:
          requests:
            memory: 32Mi
            cpu: 5m

5 test

start a tunnel for the istio-ingressgateway service.

1
2
3
4
5
6
7
8
9

$ minikube tunnel                                                                                                                                                                             [19:58:01]
✅  Tunnel successfully started

📌  NOTE: Please do not close this terminal as this process must stay alive for the tunnel to be accessible ...

❗  The service/ingress istio-ingressgateway requires privileged ports to be exposed: [80 443]
🔑  sudo permission will be asked for it.
🏃  Starting tunnel for service istio-ingressgateway.
Password:

and set the /etc/hosts

1
2

$ cat /etc/hosts |grep rollout                                                                                                                                         [20:01:12]
127.0.0.1	localhost rollouts-demo-vsvc1.local rollouts-demo-vsvc2.local rollouts-demo.local

to check the rollout-demo VirtualService resource.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

$ kubectl get vs rollouts-demo -o yaml                                                                                                                                 [19:59:17]
apiVersion: networking.istio.io/v1
kind: VirtualService
metadata:
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: |
      {"apiVersion":"networking.istio.io/v1alpha3","kind":"VirtualService","metadata":{"annotations":{},"name":"rollouts-demo","namespace":"default"},"spec":{"gateways":["rollouts-demo-gateway"],"hosts":["rollouts-demo.local"],"http":[{"name":"primary","route":[{"destination":{"host":"rollouts-demo-stable","port":{"number":80}},"weight":100},{"destination":{"host":"rollouts-demo-canary","port":{"number":80}},"weight":0}]}]}}
  creationTimestamp: "2024-07-04T10:00:19Z"
  generation: 6
  name: rollouts-demo
  namespace: default
  resourceVersion: "55486"
  uid: 037f970f-1fc8-43cc-a651-aa1bf1910dd6
spec:
  gateways:
  - rollouts-demo-gateway
  hosts:
  - rollouts-demo.local
  http:
  - name: primary
    route:
    - destination:
        host: rollouts-demo-stable
        port:
          number: 80
      weight: 50
    - destination:
        host: rollouts-demo-canary
        port:
          number: 80
      weight: 50

from the VirtualService resource, you can find the weight of the canary service is 50, and the weight of the stable service is 50. this value is the second step of the canary strategy.

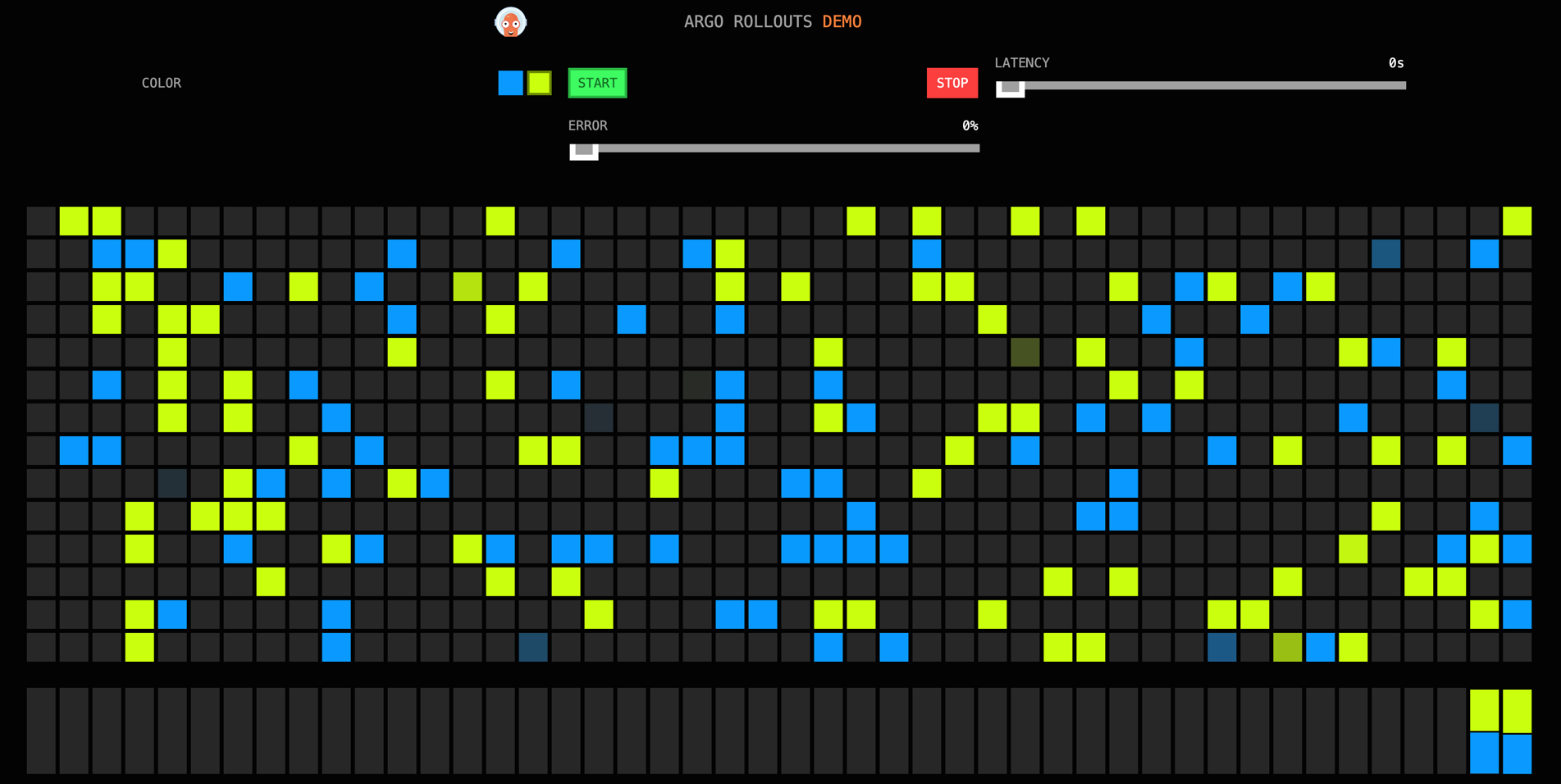

try to access the rollouts-demo.local in the browser, you can see the result is blue color. because the canary service is 50% of the traffic.
