APISIX Integrates with OpenTelemetry to Collect Tracing Data 环境介绍
APISIX 运行在本地
opentelemetry 相关的服务包含 client, server, jaeger, prometheus, zipkin
安装基础环境 下载代码, 这个代码包含一个 docker compose 的一套文件
1 2 3 git clone https://github.com/open-telemetry/opentelemetry-collector-contrib.git cd opentelemetry-collector-contrib/examples/demodocker compose up -d
这个环境里面包含上面说的全部服务, 除了 APISIX 本身.
将 APISIX 集成进去 修改 APISIX 的配置 修改 conf/config-default.yaml ,因为 opentelemetry 的插件默认是没有启用的, 所以需要启用一下.
1 2 3 4 5 6 7 8 9 10 11 12 13 @@ -437,7 +437,7 @@ plugins: # plugin list (sorted by priority) - request-id # priority: 12015 - zipkin # priority: 12011 #- skywalking # priority: 12010 - #- opentelemetry # priority: 12009 + - opentelemetry # priority: 12009 - ext-plugin-pre-req # priority: 12000 - fault-injection # priority: 11000 - mocking # priority: 10900
启动 APISIX 1 2 3 4 5 6 $ make run [ info ] run -> [ Start ] /Users/guohao/workspace/apisix/bin/apisix start /usr/local/openresty//luajit/bin/luajit ./apisix/cli/apisix.lua start APISIX is running... [ info ] run -> [ Done ]
修改 opentelemetry-collector-contrib demo 的配置 运行 otel/opentelemetry-collector 接受 http 上报 之前已经下载安装了代码, 现在修改一下里面的配置.
1 2 3 4 5 6 7 8 9 10 11 12 @@ -2,6 +2,7 @@ receivers: otlp: protocols: grpc: + http: exporters: prometheus:
添加这个配置文件目的是运行 APISIX 上报, 具体参考一下 conf/config-default.yaml 里面的 attr .
修改 docker-compose.yaml 因为 APISIX 是在宿主机器, 而这些服务是在容器里面. 但是默认的配置文件不允许和宿主机器通讯.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 @@ -9,6 +9,8 @@ services: - "16686:16686" - "14268" - "14250" + networks: + - demo_default # Zipkin zipkin-all-in-one: @@ -16,6 +18,8 @@ services: restart: always ports: - "9411:9411" + networks: + - demo_default # Collector otel-collector: @@ -30,10 +34,13 @@ services: - "8889:8889" # Prometheus exporter metrics - "13133:13133" # health_check extension - "4317:4317" # OTLP gRPC receiver + - '4318:4318' - "55679:55679" # zpages extension depends_on: - jaeger-all-in-one - zipkin-all-in-one + networks: + - demo_default demo-client: build: @@ -42,9 +49,11 @@ services: restart: always environment: - OTEL_EXPORTER_OTLP_ENDPOINT=otel-collector:4317 - - DEMO_SERVER_ENDPOINT=http://demo-server:7080/hello + - DEMO_SERVER_ENDPOINT=http://192.168.31.166:9080/hello depends_on: - demo-server + networks: + - demo_default demo-server: build: @@ -66,3 +75,9 @@ services: - ./prometheus.yaml:/etc/prometheus/prometheus.yml ports: - "9090:9090" + networks: + - demo_default + +networks: + demo_default: + external: true
这个网络 external 是关键的, 运行访问外网.
第二个修改点, DEMO_SERVER_ENDPOINT 这个配置是指向 APISIX 网关的.192.168.31.166 这个 IP 地址是开发机器的地址.
配置 router 查看一下 container 信息了.
1 2 3 4 5 6 7 8 $ docker ps CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES 396943977b8a demo-demo-client "/app/main" 46 minutes ago Up 43 minutes demo-demo-client-1 1443892b209b demo-demo-server "/app/main" 46 minutes ago Up 46 minutes 0.0.0.0:53827->7080/tcp demo-demo-server-1 31bda5db3190 otel/opentelemetry-collector:0.67.0 "/otelcol --config=/…" 46 minutes ago Up 43 minutes 0.0.0.0:1888->1888/tcp, 0.0.0.0:4317-4318->4317-4318/tcp, 0.0.0.0:8888-8889->8888-8889/tcp, 0.0.0.0:13133->13133/tcp, 0.0.0.0:55679->55679/tcp, 55678/tcp demo-otel-collector-1 f469be73c494 prom/prometheus:latest "/bin/prometheus --c…" 56 minutes ago Up 56 minutes 0.0.0.0:9090->9090/tcp prometheus 298d6ba05bb1 jaegertracing/all-in-one:latest "/go/bin/all-in-one-…" 56 minutes ago Up 56 minutes 5775/udp, 6831-6832/udp, 5778/tcp, 0.0.0.0:16686->16686/tcp, 0.0.0.0:53028->14250/tcp, 0.0.0.0:53029->14268/tcp demo-jaeger-all-in-one-1 09d9d219e559 openzipkin/zipkin:latest "start-zipkin" 56 minutes ago Up 56 minutes (healthy) 9410/tcp, 0.0.0.0:9411->9411/tcp demo-zipkin-all-in-one-1
这个时候测试一下 demo-demo-server 验证一下端口是不是可以工作的.
1 2 $ curl http://192.168.31.166:53827/hello Hello World⏎
配置 router
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 curl http://127.0.0.1:9180/apisix/admin/routes/1 -H 'X-API-KEY: edd1c9f034335f136f87ad84b625c8f1' -X PUT -d ' { "uri": "/hello", "plugins": { "opentelemetry": { "sampler": { "name": "always_on" } } }, "upstream": { "type": "roundrobin", "nodes": { "127.0.0.1:53827": 1 } } }'
验证 router 的是不是正常工作
1 2 curl http://192.168.31.166:9080/hello Hello World
这个时候APISIX已经工作了,再检查一下 demo-demo-client 的日志
1 2 3 4 5 6 7 8 9 10 docker logs -f 396943977b8a ... Latency: 253.957ms Latency: 19.111ms Latency: 236.504ms Latency: 48.093ms

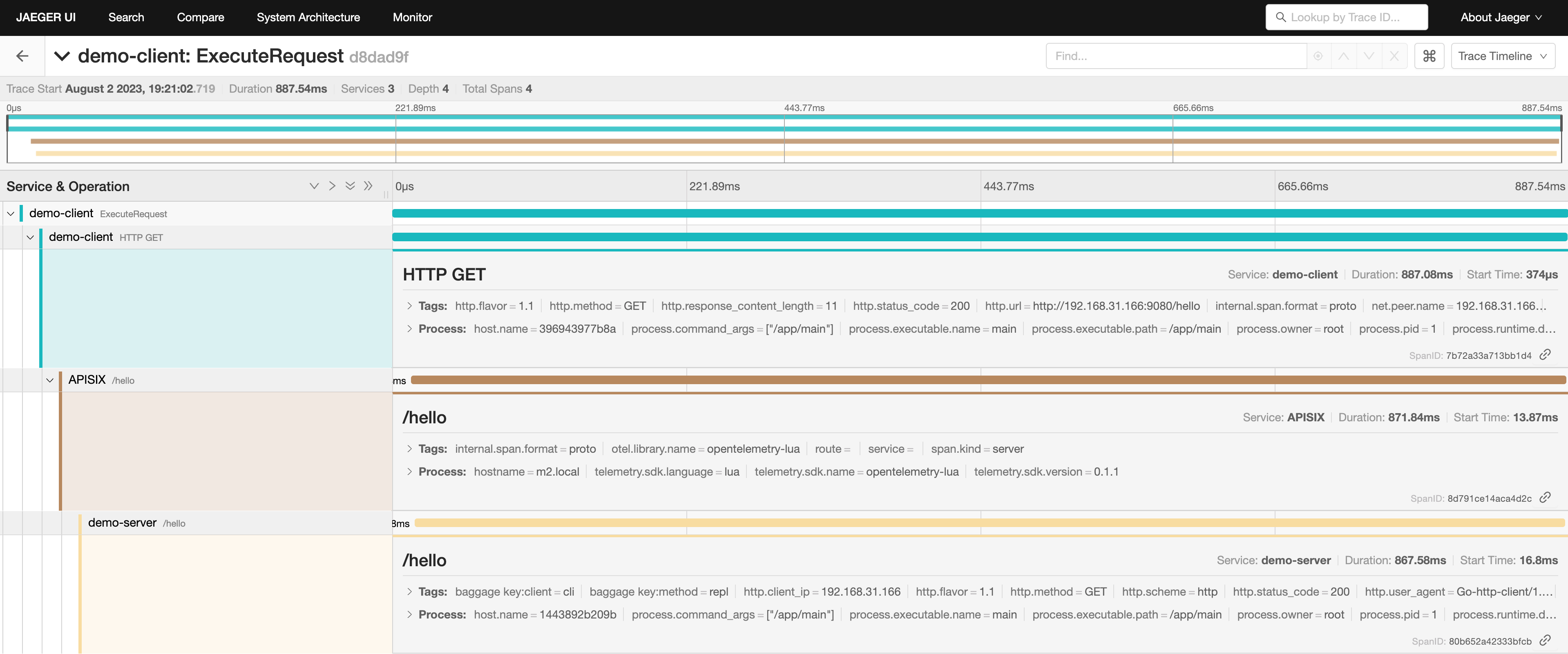

检查 jaeger 访问 http://localhost:16686/search service 的状态是 demo-client .
