service externalTrafficPolicy 探究

因为业务需要在POD中获取客户端的正式地址，通过调研发现只要创建service的是spec.externalTrafficPolicy 字段指定为Local即可。

这片文章探究一下Local这个字段是如何实现的。

创建一个 service 展示如下，之所以使用 nlb 是因为 aws 的 nlb是可以透传客户端原地址。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/aws-load-balancer-type: nlb
  name: "service-2048-local"
  namespace: "2048-game"
spec:
  type: LoadBalancer
  externalTrafficPolicy: Local
  ports:
  - port: 80
    targetPort: 80
    protocol: TCP
  selector:
    name: "2048-game"
1
2
3
$ kubectl --kubeconfig kubeconfig -n 2048-game get svc -o wide
NAME                 TYPE           CLUSTER-IP       EXTERNAL-IP                                                               PORT(S)        AGE   SELECTOR
service-2048-local   LoadBalancer   192.168.104.28   a7c77732499c111ea9b5f02d6ecb8582-1465649123.us-east-1.elb.amazonaws.com   80:30636/TCP   22h   name=2048-game

service 的 externalTrafficPolicy的默认配置是ClusterIP，如果使用默认的值，出于对kubernetes与cloud-provider-aws的理解，我知道当我流量通过 nlb会被 targetgroup转发到机器的nodeport，然后被转发到目标容器中。

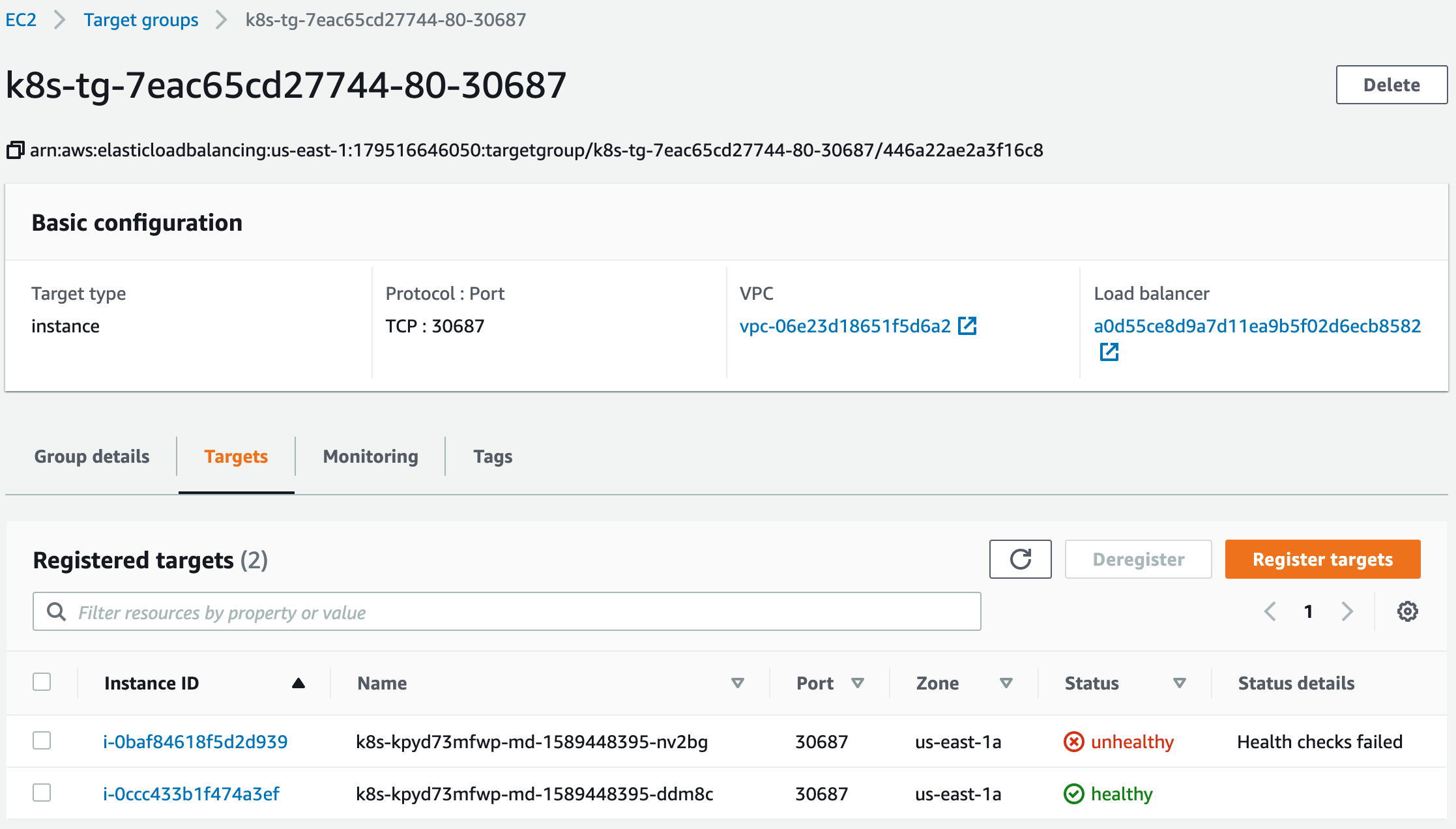

如果指定了 externalTrafficPolicy 为 local可以将流量转发只会被转发到运行POD的节点上。在 AWS 上做到这样的效果是得益于nlb的健康检查，targetgroup的健康检查会发现没有运行 POD 的healthCheck端口是不通的。

targetgroup
targetgroup

k8s 是如何实现

通过 service的文件我知道了健康检查端口是30965，在集群的两个节点上探查健康检查的端口

1
2
3
4
5
6
7
8
# curl http://10.188.166.140:30965//healthz
{
	"service": {
		"namespace": "2048-game",
		"name": "service-2048-local"
	},
	"localEndpoints": 2
}
1
2
3
4
5
6
7
8
# curl http://10.188.166.141:30965//healthz
{
	"service": {
		"namespace": "2048-game",
		"name": "service-2048-local"
	},
	"localEndpoints": 0
}

kube-proxy就根据上面的两个地方的差异生成不同的 iptables规则，如果当前节点健康检查localEndpoints不为0，那么当前节点就会生成转发规则指向目标容器，如果没有就生成DROP规则丢弃nlb的健康检查，这样流量就不会被转发到这个没有运行POD的节点上。

运行 POD 节点的转发规则

当前的 service的externalTrafficPolicy为local

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
# iptables-save | grep 30687
-A KUBE-NODEPORTS -s 127.0.0.0/8 -p tcp -m comment --comment "2048-game/service-2048-local:" -m tcp --dport 30687 -j KUBE-MARK-MASQ
-A KUBE-NODEPORTS -p tcp -m comment --comment "2048-game/service-2048-local:" -m tcp --dport 30687 -j KUBE-XLB-66B67NPFXW65VVJM

# iptables-save | grep KUBE-XLB-66B67NPFXW65VVJM
:KUBE-XLB-66B67NPFXW65VVJM - [0:0]
-A KUBE-NODEPORTS -p tcp -m comment --comment "2048-game/service-2048-local:" -m tcp --dport 30687 -j KUBE-XLB-66B67NPFXW65VVJM
-A KUBE-XLB-66B67NPFXW65VVJM -s 10.188.166.0/24 -m comment --comment "Redirect pods trying to reach external loadbalancer VIP to clusterIP" -j KUBE-SVC-66B67NPFXW65VVJM
-A KUBE-XLB-66B67NPFXW65VVJM -m comment --comment "Balancing rule 0 for 2048-game/service-2048-local:" -m statistic --mode random --probability 0.50000000000 -j KUBE-SEP-TVXZJYL67XY2CHS2
-A KUBE-XLB-66B67NPFXW65VVJM -m comment --comment "Balancing rule 1 for 2048-game/service-2048-local:" -j KUBE-SEP-UCWOW7PLEZDILT5N

# iptables-save | grep KUBE-SEP-TVXZJYL67XY2CHS2
:KUBE-SEP-TVXZJYL67XY2CHS2 - [0:0]
-A KUBE-SEP-TVXZJYL67XY2CHS2 -s 10.188.166.159/32 -j KUBE-MARK-MASQ
-A KUBE-SEP-TVXZJYL67XY2CHS2 -p tcp -m tcp -j DNAT --to-destination 10.188.166.159:80 // here is
-A KUBE-SVC-66B67NPFXW65VVJM -m statistic --mode random --probability 0.50000000000 -j KUBE-SEP-TVXZJYL67XY2CHS2
-A KUBE-XLB-66B67NPFXW65VVJM -m comment --comment "Balancing rule 0 for 2048-game/service-2048-local:" -m statistic --mode random --probability 0.50000000000 -j KUBE-SEP-TVXZJYL67XY2CHS2

可以看到直接 DANT 出去了

没有运行 POD 节点的转发规则

当前的 service的externalTrafficPolicy为local

1
2
3
4
5
6
7
8
9
# iptables-save | grep 30687
-A KUBE-NODEPORTS -s 127.0.0.0/8 -p tcp -m comment --comment "2048-game/service-2048-local:" -m tcp --dport 30687 -j KUBE-MARK-MASQ
-A KUBE-NODEPORTS -p tcp -m comment --comment "2048-game/service-2048-local:" -m tcp --dport 30687 -j KUBE-XLB-66B67NPFXW65VVJM

# iptables-save | grep KUBE-XLB-66B67NPFXW65VVJM
:KUBE-XLB-66B67NPFXW65VVJM - [0:0]
-A KUBE-NODEPORTS -p tcp -m comment --comment "2048-game/service-2048-local:" -m tcp --dport 30687 -j KUBE-XLB-66B67NPFXW65VVJM
-A KUBE-XLB-66B67NPFXW65VVJM -s 10.188.166.0/24 -m comment --comment "Redirect pods trying to reach external loadbalancer VIP to clusterIP" -j KUBE-SVC-66B67NPFXW65VVJM
-A KUBE-XLB-66B67NPFXW65VVJM -m comment --comment "2048-game/service-2048-local: has no local endpoints" -j KUBE-MARK-DROP

可以看到DROP的规则，nlb做健康检查都不会通过，流量也就不会到这个没有运行POD的节点上。

简单回顾一下externalTrafficPolicy为Cluster

1
2
3
# iptables-save | grep 30687
-A KUBE-NODEPORTS -p tcp -m comment --comment "2048-game/service-2048-local:" -m tcp --dport 30687 -j KUBE-MARK-MASQ
-A KUBE-NODEPORTS -p tcp -m comment --comment "2048-game/service-2048-local:" -m tcp --dport 30687 -j KUBE-SVC-66B67NPFXW65VVJM
1
2
3
4
5
6
# iptables-save | grep KUBE-SVC-66B67NPFXW65VVJM
:KUBE-SVC-66B67NPFXW65VVJM - [0:0]
-A KUBE-NODEPORTS -p tcp -m comment --comment "2048-game/service-2048-local:" -m tcp --dport 30687 -j KUBE-SVC-66B67NPFXW65VVJM
-A KUBE-SERVICES -d 192.168.61.194/32 -p tcp -m comment --comment "2048-game/service-2048-local: cluster IP" -m tcp --dport 80 -j KUBE-SVC-66B67NPFXW65VVJM
-A KUBE-SVC-66B67NPFXW65VVJM -m statistic --mode random --probability 0.50000000000 -j KUBE-SEP-TVXZJYL67XY2CHS2
-A KUBE-SVC-66B67NPFXW65VVJM -j KUBE-SEP-UCWOW7PLEZDILT5N
1
2
3
4
5
# iptables-save | grep KUBE-SEP-TVXZJYL67XY2CHS2
:KUBE-SEP-TVXZJYL67XY2CHS2 - [0:0]
-A KUBE-SEP-TVXZJYL67XY2CHS2 -s 10.188.166.159/32 -j KUBE-MARK-MASQ
-A KUBE-SEP-TVXZJYL67XY2CHS2 -p tcp -m tcp -j DNAT --to-destination 10.188.166.159:80
-A KUBE-SVC-66B67NPFXW65VVJM -m statistic --mode random --probability 0.50000000000 -j KUBE-SEP-TVXZJYL67XY2CHS2
1
2
-A KUBE-SEP-TVXZJYL67XY2CHS2 -p tcp -m tcp -j DNAT --to-destination 10.188.166.159:80
-A KUBE-SEP-UCWOW7PLEZDILT5N -s 10.188.166.186/32 -j KUBE-MARK-MASQ

可以看到最一个是做IP地址的伪装，自动选择合适的地址做原地址转换。
